| ◆ 产品编号：p0019926 |

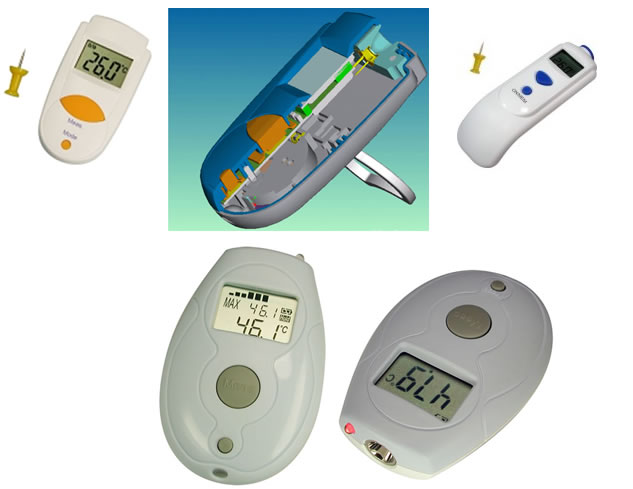

| ◆ 产品名：TN1系列便携式红外测温仪 |
|
|
| |
| |
|
|
| |
|
|
|
| 技术参数 |
|
|
| 型号 |
TN15A |
TN105i2 |
TN102B |
|
|
|
|
|
|
| 测量范围 |
-55～220°C |
-33～220°C |
-33～220°C |
|
|
|
|
|
|
| 使用温度 |
-10～50°C |
-10～50°C |
-10～50°C |
|
|
|
|
|
|
| 精度(25℃时) |
+/-0.6°C |
+/-0.6°C |
+/-0.6°C |
|
|
|
|
|
|
| 满量程精度 |
+/-2%,2°C |
+/-2%,2°C |
+/-2%,2°C |
|
|
|
|
|
|
| 分辨率(FSO) |
0.1°C/0.1°F |
0.1°C/0.1°F |
0.1°C/0.1°F |
|
|
|
|
|
|
| 响应时间 |
0.5sec |
0.5sec |
0.5sec |
|
|
|
|
|
|
| 距离系数 D:S |
1:1 |
1:1 |
1:1 |
|
|
|
|
|
|
| 发射率 |
0.05～1 step.01 |
0.05～1 step.01 |
0.05～1 step.01 |
|
|
|
|
|
|
| 尺寸 |
-- |
18x36.6x67.8mm |
-- |
|
|
|
|
|
|
| 波长 |
5um-14um |
5um-14um |
5um-14um |
|
|
|
|
|
|
| 重量(含电池) |
. |
32g |
-- |
|
|
|
|
|
|
| 模式 |
rtMax,Lock |
Max,Min,Lock |
Max,Min,Lock |
|
|
|
|
|
|
| 电源 |
CR2032x1 |
CR2032x1 |
CR2032x1 |
|
|
|
|
|
|
| 电池寿命 |
Typ.40hr |
Typ.40hr |
Typ.40hr |
|
|
|
|
|
|
| CE 认证 |
Yes |
Yes |
Yes |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
